| Name: |

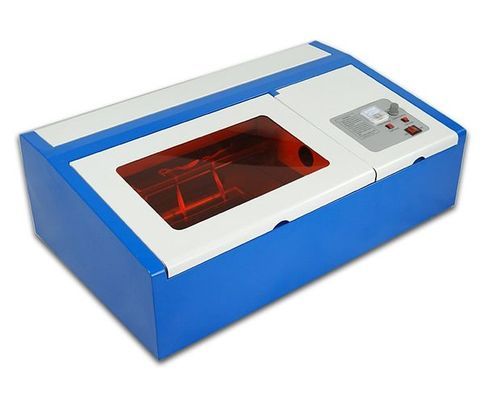

SF40B |
| Processing area |
200mm*300mm |
| Laser power |
40W |
| Laser type: |
Sealed Co2 glass laser tube |
| Cooling mode: |
Water cooling and protection system |
| Resetting positioning accuracy: |
±0.01mm |
| Compatible Software: |
CorelDraw AutoCAD Photoshop |
| Whole machine size: |
980mm*680mm*280mm |
| Engraving speed |
1-6000mm/min |
| Cutting speed |
1-1000mm/min |
| Cutting thickness |
0-25mm acrylic (others determined by materials) |
| Resolution ratio |
≤0.0125mm |
| Position system: |
Red dot |
| Interface: |
USB |
| Minimum shaping character |
letter 0.5mm, Chinese 0.5mm |
| Support graphic format |
DST, PLT, BMP, DXF |
| Gross power |
1000W |
| Driving mode: |
DC0.8A 24V stepper motor |
| Working voltage: |
AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
| Operating temperature |
0-45C |
| Operating humidity: |
5-95% |
| Driving system |
stepper |
| Packing: |
wooden box |
| Guarantee time: |
1 year, laser tube 8 months |
| Option: |
Rotary attachment for column materials |
| Operation: |
Video to tell customer how to operate the machine |
| Gross weight: |
90KGS after package |
